V vs. EV
There are two versions of the implements with 1,5 m and 1,8 m cutting widths: the V (Veld Cutter) and the EV (Extended Veld Cutter). The deck of the EV is ±300 mm wider on the left-hand side then the V equivalent. This design allows for a larger space for the cuttings to move out of the blade path into a windrow. This configuration further reduces the possibility of double chopping and creates a bigger and wider windrow, which assists the baling process.
In the case of lucerne and teff (softer grass) we recommend the EV, which is fitted with specially designed high-lift blades (H1460) that create a vacuum which will lift the material and also direct in into a window. This will result in a cleaner and more effective cut.
SMALL | ||||||
Model | Description | Blades | Cut/Width (m) | Cut Height(mm) | Mass (kg) | Tractor (kW) |
F40/120V | Haymaker® | 4 | 1,2 | 10-140 | 345 | 35-50 |
INTERMEDIATE | ||||||

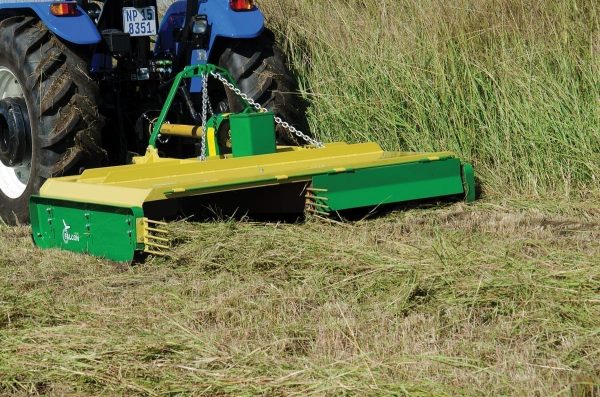

F80/150V | Haymaker® | 2 | 1,5 | 40-155 | 513 | 45-80 |
F80/150EV | Haymaker® | 2 | 1,5 | 40-155 | 557 | 45-80 |
F80/180V | Haymaker® | 2 | 1,8 | 40-155 | 553 | 45-80 |
F80/180EV | Haymaker® | 2 | 1,8 | 40-155 | 610 | 45-80 |
F80/200V | Haymaker® | 2 | 2,0 | 40-155 | 656 | 45-80 |
F80/200VH | Haymaker® | 2 | 2,0 | 40-155 | 656 | 45-80 |
LARGE | ||||||
F80/350V | Haymaker® | 2×2 | 3,5 | 40-240 | 1,298 | 74-96 |
F60/350VT | Haymaker® | 2×2 | 3,5 | 40-240 | 1,350 | min 55 |
